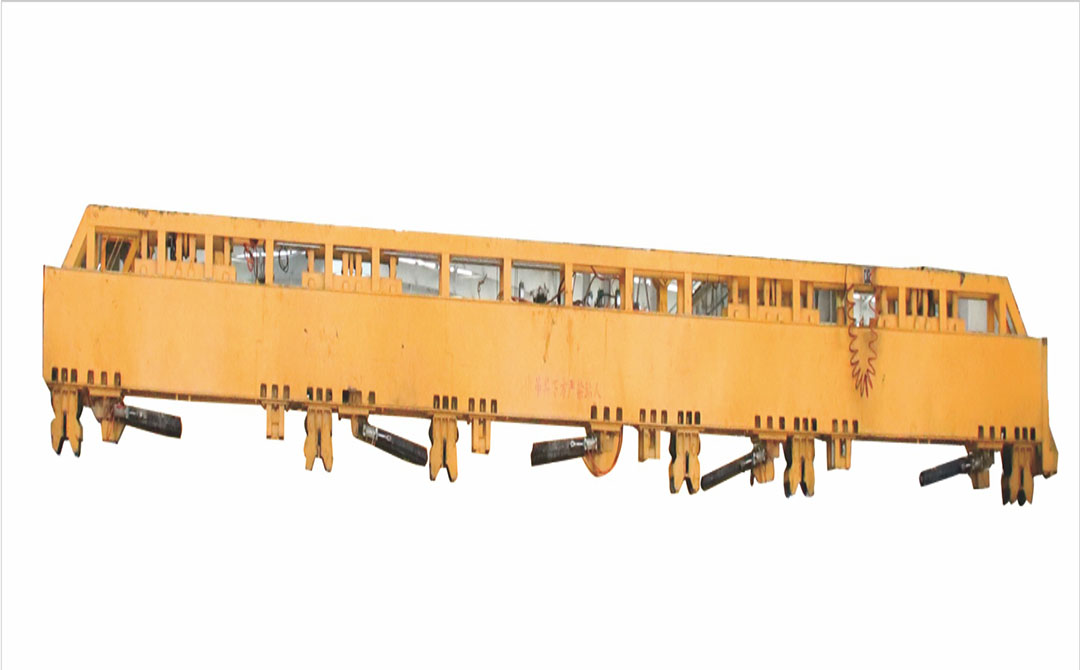

Pneumatic Steel Mold Slinger
Product function : The slinger is used in the spun pile or pole production line,and is used to automaticall grab spun piles in the spun pile storage site, applicable for φ300-600 spun piles.
Product highlights : The crane operator is controlled in the crane control room, and there is no need for personnel to hook in the field, which improves the production safety factor and production efficiency, and reduces the operation labor intensity of employees.
Parámetro técnico
| Technical Parameter | ||||||||||||||
| Equipment name | Applicable pile types | Applicable mold length | Overall dimensions (length * width * height) | Rack structure/material | Weight of lifting equipment | Maximum lifting weight | Number of cover mold hooks | Number of bottom mold hooks | Number of cage reinforcement hooks | Specification of cover mold grab hook cylinder | Specification of bottom mold grab hook cylinder | Working pressure | Total gas consumption | Product legend |
| Pipe mold/cage reinforcement lifting device | φ300-600 | 8-15m | 11.3*1.7*0.5 | Profile welding/Q235 | 3021kg | 13.5T | 4 | 4 | 4 | φ63*125 | φ63*100+φ100*250 | 0.6Mpa | 0.36m3min | |
| φ300-600 | 10-15m | 13.3*1.7*0.5 | Profile welding/Q235 | 3340kg | 13.5T | 4 | 4 | 4 | φ63*125 | φ63*100+φ100*250 | 0.6Mpa | 0.36m3min | ||
| φ500-800 | 8-15m | 11.3*2*0.5 | Profile welding/Q235 | 5614kg | 19.5T | 4 | 4 | 4 | φ80*125 | φ63*125+φ100*300 | 0.6Mpa | 0.67m3/min | ||
| φ800-1000 | 8-20m | 16.5*3.1*1.2 | Welding of steel plate profiles/Q235 | 9576KG | 50T | 6 | 5 | 8 | φ80*125 | φ100*150+φ100*150+φ125*450 | 0.6Mpa | 0.8m3/min | ||
| Consumable parts | ||||||||||||||
| Number | Part name | Design usage duration | Damage form | Maintenance cycle | ||||||||||
| 1 | Cover mold grab hook piece | A year | Wear on the contact surface with the pipe mold | 1 month | ||||||||||
| 2 | Bottom mold grab hook piece | A year | Wear on the contact surface with the pipe mold | 1 month | ||||||||||
| 3 | Bottom hook cylindrical gear | 6 months | Gear meshing wear | 1 month | ||||||||||
| 4 | Bottom mold grab hook integral thrust bearing | 6 months | Wear on the contact surface with the pin shaft | 1 month | ||||||||||
